Agriculture
Bearings for Agricultural Equipment
Agricultural machinery operates in some of the most punishing environments in any industry — continuous exposure to dust, mud, water, crop debris, and heavy impact loads, often for extended hours with minimal maintenance windows. Bearing failure in the field means costly downtime during time-critical harvest and planting seasons, where every hour of lost operation directly impacts yield and revenue.
BOM manufactures custom integrated deep groove ball bearings engineered specifically for agricultural equipment applications. With full-spectrum custom manufacturing capability — including bearing-sprocket integration, multi-layer sealing structures, and impact-resistant configurations — BOM delivers solutions where standard catalog bearings fall short:
- Integrated bearing-sprocket one-piece construction for chain-driven agricultural systems
- Multi-layer sealing for dust, mud, water, and crop debris ingress protection
- Enlarged rolling elements enabled by space-saving integrated architecture
- Heavy impact load tolerance for continuous harvesting and tillage operations
- Extended maintenance-free service life for reduced field downtime
- Full-specification custom manufacturing — dimensions, materials, coatings, and bearing structure
Sealed for Harsh Environments
Agricultural bearings face a relentless combination of fine dust, abrasive soil particles, water, and fibrous crop residue — conditions that destroy standard seals within a single season. BOM manufactures bearings with multi-layer sealing structures that create multiple barriers against contaminant ingress, maintaining lubricant integrity and preventing internal corrosion even during prolonged exposure to mud, standing water, and high-pressure washdown. The integrated one-piece construction saves internal space, allowing the sealing system to be designed with more effective contact geometries and additional protective layers than conventional separate-component assemblies permit.
Heavy-Duty Durability
Combine harvesters, disc harrows, and tillage equipment subject bearings to sustained heavy radial loads combined with sudden impact forces — rocks, compacted soil, and uneven terrain create shock loading that standard bearings are not designed to absorb repeatedly. BOM’s integrated bearing architecture eliminates the conventional bearing-sprocket interface, freeing space within the same envelope for larger rolling elements with greater load-carrying surface area. The result: doubled load capacity and service life compared to the original separate-component assembly, directly reducing the risk of mid-season bearing failure and unplanned field downtime.
Custom Integration
In many agricultural drive systems, the bearing and its driven component — a sprocket ring, chain wheel, or drive hub — are manufactured as separate parts, bolted or pressed together during assembly. This two-piece arrangement constrains the bearing envelope, limiting the space available for rolling elements and sealing structures. BOM manufactures integrated one-piece bearing assemblies where the sprocket ring or drive interface is machined directly as part of the bearing unit, eliminating the component interface and reclaiming space for a more capable bearing design. The integrated architecture also removes a primary point of wear and loosening, improving long-term alignment and transmission reliability.
BOM Products for Agricultural Equipment
Custom Integrated Deep Groove Ball Bearings
One-piece bearing-sprocket assemblies for agricultural chain-drive systems — enlarged rolling elements and multi-layer sealing within a compact integrated structure.
View Product Details →Deep Groove Ball Bearings
Standard and sealed deep groove ball bearings for agricultural motor shafts, gearbox supports, and auxiliary drive positions requiring reliable radial load capacity.
View Product Details →Tapered Roller Bearings
Combined radial and axial load support for agricultural gearboxes, wheel hubs, and heavy-duty transmission shafts operating under sustained high loads.
View Product Details →Thrust Ball Bearings
Axial load bearings for agricultural implements with vertical load paths — disc harrow gangs, rotary cutter spindles, and vertical-axis drive assemblies.
View Product Details →Application Cases

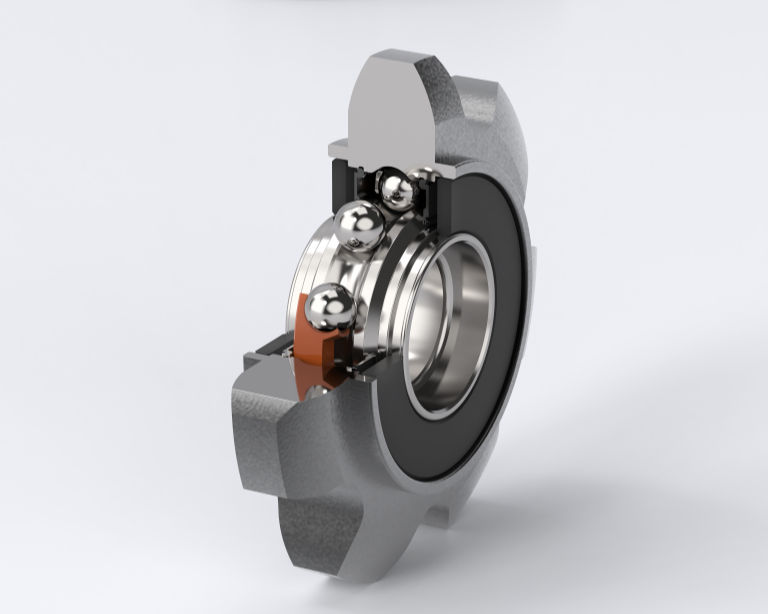

Integrated Bearing-Sprocket Assembly — Corn Combine Harvesters
In conventional corn combine harvester drive systems, the bearing and sprocket ring are separate components assembled together. This two-piece arrangement limits the space available for rolling elements and sealing structures within the bearing envelope — constraining both load capacity and service life. The exposed interface between bearing and sprocket also creates a path for contaminant ingress, accelerating wear in the dust-heavy, moisture-rich harvesting environment.
BOM engineered an integrated one-piece bearing-sprocket assembly that machines the chain-driven sprocket ring directly as part of the bearing unit. By eliminating the component interface, the design reclaims internal space for larger rolling elements and a multi-layer sealing structure — waterproof, mud and sand resistant, and impact tolerant. The result: doubled load capacity and service life compared to the original separate assembly, significantly reducing the risk of mid-harvest bearing failure and unplanned downtime for agricultural equipment operators.
Bearings for Agricultural Equipment: Why Choose BOM?
Custom Bearing Solutions for Agricultural OEMs
BOM Bearing is a professional manufacturer of custom integrated bearings for agricultural equipment applications. Rather than supplying standard catalog bearings, BOM engineers application-specific bearing assemblies — redesigning the bearing architecture to integrate driven components, optimize sealing structures, and maximize load capacity within existing equipment envelopes.
ISO 9001, IATF 16949, and ISO 14001 certified — quality and environmental standards validated at every production stage. Full-specification customization from non-standard dimensions and alternative materials to specialized coatings and complete bearing architecture redesign — engineered to your exact requirement.
Frequently Asked Questions
What types of bearings are used in agricultural equipment?
Agricultural machinery commonly uses deep groove ball bearings (motor shafts, auxiliary drives), tapered roller bearings (gearboxes, wheel hubs), thrust ball bearings (disc harrow gangs, vertical-axis drives), and pillow block / insert bearings (conveyor shafts, grain handling systems). The specific type depends on the load direction, speed, and environmental exposure at each position. For chain-driven systems such as combine harvester feeder chains and straw walkers, integrated bearing-sprocket assemblies provide superior durability compared to separate-component arrangements.
How do I choose the right sealing type for agricultural bearings?
Agricultural applications typically require contact seals (rubber or PTFE lip seals) rather than non-contact shields, because the operating environment includes fine dust, mud, water, and fibrous crop debris that non-contact designs cannot adequately exclude. For positions exposed to direct water or mud contact — such as disc harrow bearings, ground-engaging tool shafts, and combine harvester deck bearings — multi-layer sealing with additional external flinger rings or labyrinth seals is recommended. BOM manufactures bearings with multi-layer sealing structures specifically engineered for high-contamination agricultural environments.
What is an integrated bearing-sprocket assembly and what are its advantages?
An integrated bearing-sprocket assembly is a one-piece component where the chain-driven sprocket ring is machined directly as part of the bearing unit, rather than being a separate component bolted or pressed onto the bearing. This eliminates the interface between bearing and sprocket — removing a primary source of wear, loosening, and contaminant ingress. The integrated design also reclaims the space previously occupied by the mounting interface, allowing larger rolling elements and more effective multi-layer sealing within the same overall envelope. BOM manufactures these assemblies with load capacity and service life improvements of up to 2× compared to conventional separate-component designs.
How long do agricultural bearings last, and what affects their service life?
Service life depends on the bearing type, load conditions, operating speed, sealing effectiveness, and maintenance practices. In clean, well-lubricated conditions, quality agricultural bearings can last multiple seasons. However, contaminant ingress — dust, moisture, and abrasive particles entering the bearing — is the primary cause of premature failure in agricultural applications. Effective sealing is therefore the single most important factor in extending bearing life in the field. BOM’s integrated bearing designs with multi-layer sealing structures are specifically engineered to maximize service life in high-contamination agricultural environments.
Can BOM manufacture custom bearings for specific agricultural equipment requirements?
Yes. BOM manufactures fully custom bearing assemblies for agricultural equipment — from non-standard dimensions and alternative materials to complete bearing architecture redesign. This includes integrated bearing-sprocket assemblies, custom multi-layer sealing configurations, impact-resistant designs for ground-engaging equipment, and application-specific bearing units engineered to fit within existing equipment envelopes. Contact our engineering team with your application requirements for a customized recommendation.
