Sewing & Embroidery Machines

Bearings for Sewing & Embroidery Machines

Industrial sewing machines and embroidery machines operate at extreme speeds — thousands of stitches per minute — with cam-driven mechanisms converting high-speed rotary motion into complex reciprocating and oscillating patterns for needle bars, thread take-up levers, and feed mechanisms. Every bearing position in these machines endures millions of high-frequency load cycles, while the finished product demands smooth, quiet operation with minimal vibration. Bearing failure or performance degradation directly impacts stitch quality, machine uptime, and production throughput.

BOM manufactures custom integrated bearings engineered specifically for sewing and embroidery machine applications — cam linkage bearings, flanged bearings, and extended inner ring bearings that replace conventional multi-component assemblies with one-piece designs. With full-spectrum custom manufacturing capability — including bearing-linkage integration, flange-integrated mounting structures, and extended inner rings for improved shaft concentricity — BOM delivers solutions where standard catalog bearings fall short:

Cam linkage bearings — bearing and linkage arm integrated as a single one-piece component
Flanged bearings with integrated mounting interfaces for direct installation
Extended inner ring bearings for improved shaft fit and concentricity
High-speed durability for sustained operation at thousands of cycles per minute
Low noise and vibration for smooth, quiet machine operation
Full-specification custom manufacturing — dimensions, materials, coatings, and bearing structure

High-Speed Durability

Industrial sewing and embroidery machines sustain thousands of reciprocating cycles per minute for hours of continuous production. Cam mechanisms, needle bar drives, and thread take-up systems impose rapid, repetitive loading on every bearing position — conditions that quickly fatigue standard bearings not designed for this duty cycle. BOM manufactures integrated bearings with optimized internal geometry and surface finish specifically for high-speed reciprocating applications, delivering reliable performance across millions of operating cycles without loss of dimensional accuracy or increase in running clearance.

Low Noise & Vibration

Stitch quality and operator comfort both depend on smooth, quiet machine operation. Vibration from bearing positions propagates through the machine frame, affecting needle positioning accuracy and generating audible noise that compounds across a production floor with dozens of machines running simultaneously. BOM’s integrated one-piece bearing designs eliminate the interfaces between separate components that are a primary source of play, rattle, and vibration in conventional assemblies. Tighter concentricity from extended inner ring designs and precision-matched bearing fits further reduce vibration at the source, keeping noise levels low and stitch patterns consistent at full production speed.

One-Piece Integration

Conventional sewing machine designs use separate bearings, linkage arms, flanges, and shaft adapters that must be individually machined, assembled, and aligned — each interface introducing tolerance stack-up that degrades fit accuracy and increases assembly time. BOM manufactures integrated one-piece bearing assemblies where the linkage arm, mounting flange, or extended shaft interface is machined directly as part of the bearing unit. This eliminates component interfaces, improves concentricity and alignment, reduces part count, and simplifies assembly for sewing and embroidery machine manufacturers — delivering better mechanical performance with fewer parts and less labor.

BOM Products for Sewing & Embroidery Machines

Cam Linkage Bearings

Integrated bearing-linkage assemblies for cam-driven sewing machine mechanisms — bearing and linkage arm manufactured as a single one-piece component for thread take-up, needle bar, and feed drive systems.

View Product Details →

Flanged Bearings

Bearings with integrated mounting flanges for direct installation into sewing and embroidery machine frames — eliminating separate housing components and reducing assembly steps.

View Product Details →

Extended Inner Ring Bearings

Bearings with an extended inner ring that provides a longer shaft engagement surface, improving fit concentricity and alignment accuracy for high-speed rotating and oscillating positions.

View Product Details →

Application Cases

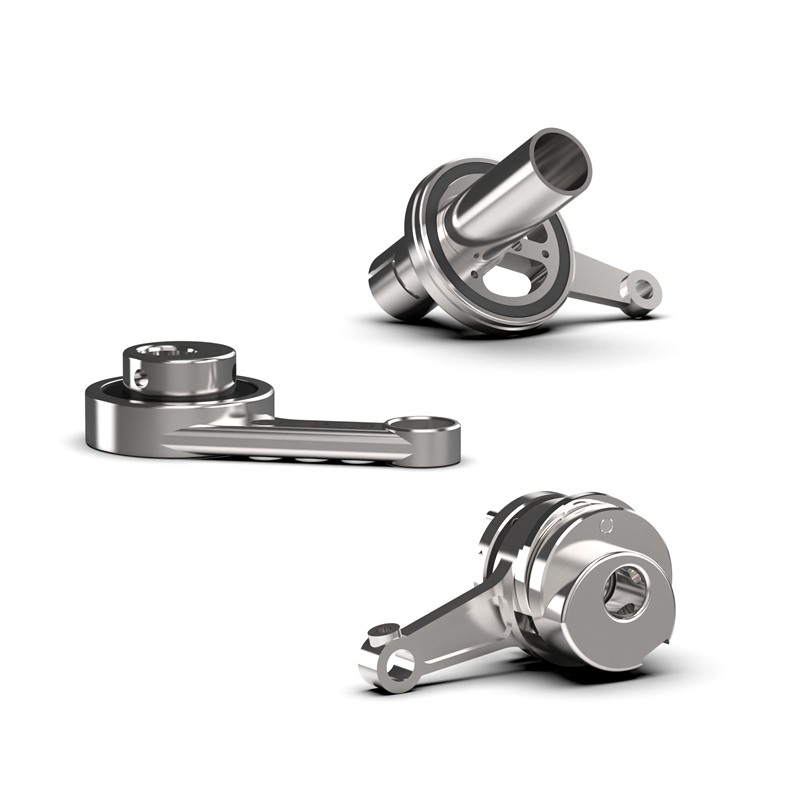

Cam Linkage Bearing for Industrial Sewing Machine Mechanism

Cam Linkage Bearings — Sewing Machine Cam Drive Mechanisms

In conventional sewing machine cam mechanisms, the bearing and the linkage arm connected to it are separate components — the bearing is pressed or retained into the linkage, and the assembly is then mounted onto the cam follower position. This multi-part arrangement introduces tolerance stack-up at the bearing-linkage interface, which under the high-frequency reciprocating loads of a sewing machine cam drive leads to progressive loosening, increased play, and vibration that degrades stitch quality over time.

BOM manufactures cam linkage bearings as integrated one-piece components — the linkage arm is machined directly as part of the bearing unit, eliminating the interface between bearing and linkage entirely. The result is a stiffer, more compact assembly with zero interface play, reduced vibration, and longer service life under the sustained high-speed reciprocating loads of industrial sewing machine production. Currently in use by the world’s top 3 sewing machine manufacturers and top 3 embroidery machine manufacturers.

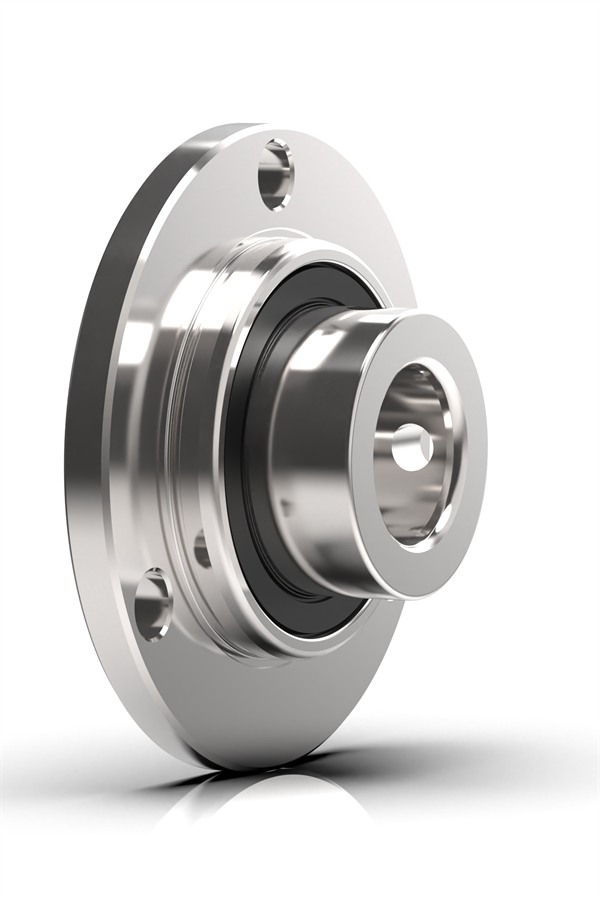

Flanged Bearing for Sewing and Embroidery Machine Frame Mounting

Flanged Bearings — Direct Frame Mounting for Sewing & Embroidery Machines

Sewing and embroidery machines contain numerous shaft support positions where bearings must be mounted into the machine frame. Conventional designs use a separate bearing pressed into a separate housing or retainer, which is then fastened to the frame — adding parts, assembly labor, and potential misalignment at each interface. In high-speed machines running thousands of cycles per minute, even slight misalignment at a shaft support position generates vibration and noise that compound across the machine.

BOM manufactures flanged bearings with the mounting interface integrated directly into the bearing outer ring, allowing the bearing to be installed into the frame in a single step without a separate housing component. The integrated flange ensures precise, repeatable positioning relative to the frame bore, reducing misalignment and simplifying the assembly process for machine manufacturers. Fewer parts, faster assembly, and better alignment — contributing to quieter, smoother machine operation at production speeds.

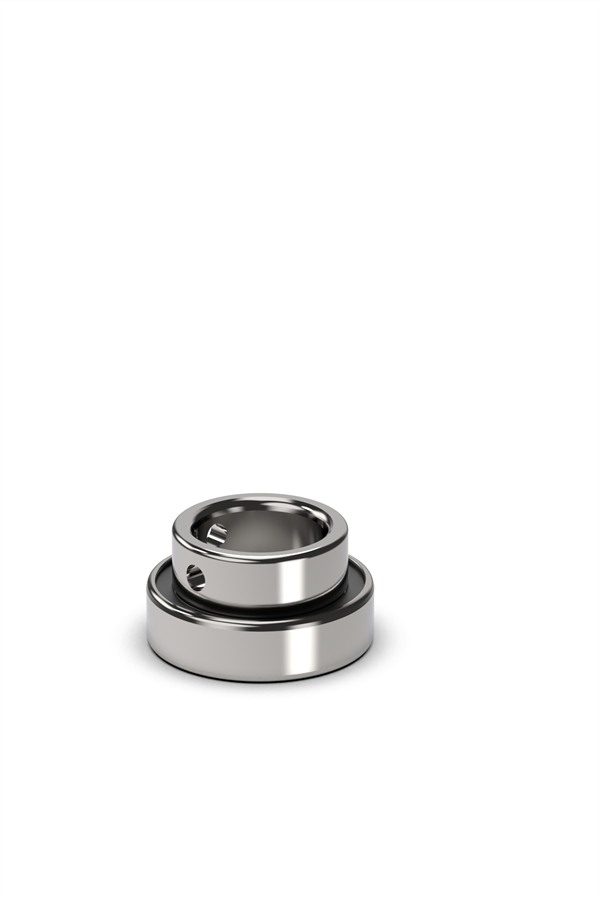

Extended Inner Ring Bearing for High-Speed Sewing Machine Shaft

Extended Inner Ring Bearings — Improved Shaft Concentricity

In high-speed sewing and embroidery machines, the concentricity between the bearing inner ring and the shaft it supports directly affects rotational smoothness, vibration levels, and component service life. Standard bearings have a relatively short inner ring width, providing limited shaft engagement length — any slight angular misalignment or uneven fit pressure across this short contact zone is amplified at high rotational speeds, generating vibration and accelerating wear on both the bearing and the shaft.

BOM manufactures extended inner ring bearings where the inner ring extends beyond the standard width, providing a longer shaft engagement surface. The increased contact length improves fit accuracy and concentricity between the bearing and shaft, reducing angular misalignment and distributing mounting stress more evenly. At the sustained high speeds of sewing and embroidery machine operation, this improved concentricity translates directly into lower vibration, reduced noise, and longer bearing and shaft service life.

Bearings for Sewing & Embroidery Machines: Why Choose BOM?

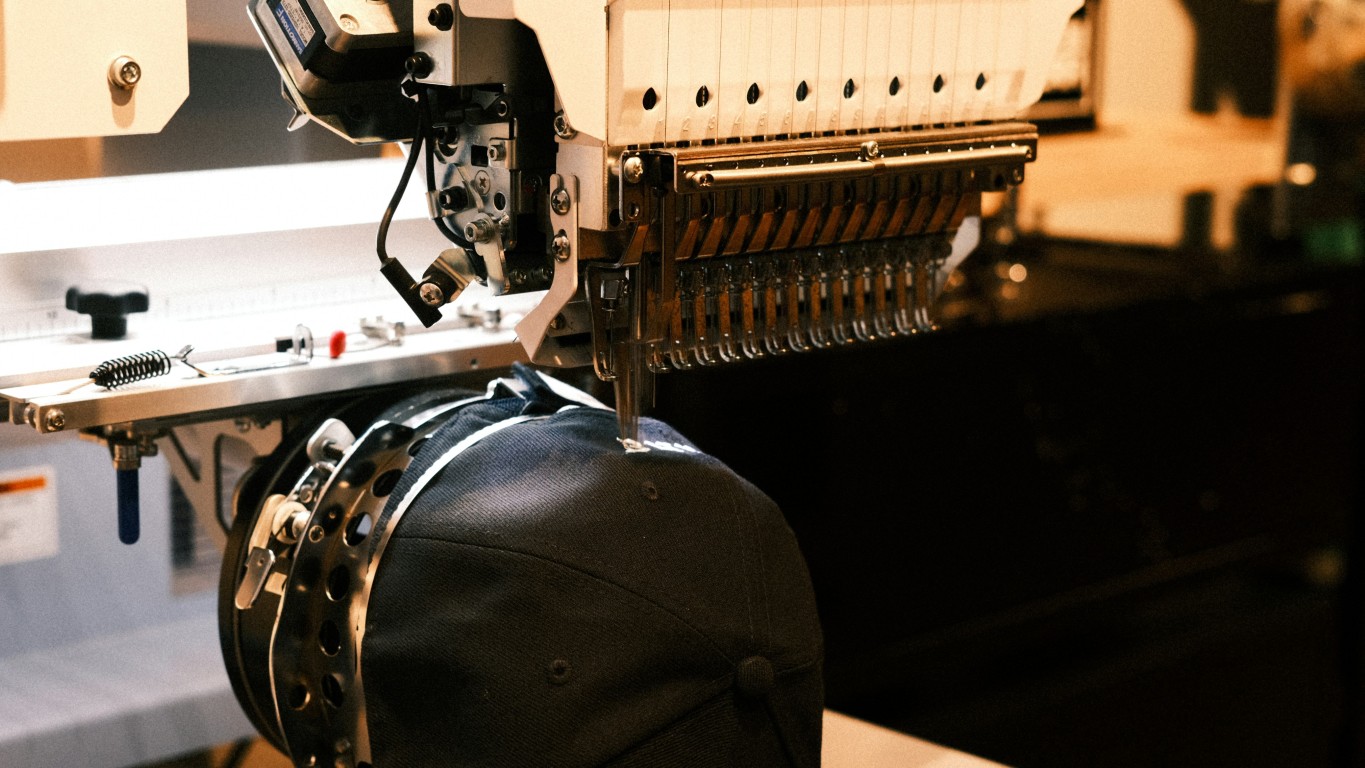

BOM Bearing Factory — Precision Manufacturing for Sewing and Embroidery Machines

Trusted by the World’s Leading Sewing & Embroidery Machine Manufacturers

BOM Bearing is a professional manufacturer of custom integrated bearings for sewing and embroidery machine applications. Trusted by the world’s top 3 sewing machine manufacturers and top 3 embroidery machine manufacturers, BOM delivers one-piece bearing assemblies — cam linkage bearings, flanged bearings, and extended inner ring bearings — engineered for the demanding high-speed, high-cycle operating conditions of industrial textile machinery production.

ISO 9001, IATF 16949, and ISO 14001 certified — quality and environmental standards validated at every production stage. Full-specification customization from non-standard dimensions and alternative materials to specialized coatings and complete bearing architecture redesign — engineered to your exact requirement.

Frequently Asked Questions

What types of bearings are used in industrial sewing machines?

Industrial sewing machines use bearings at multiple positions: cam follower and linkage mechanisms (thread take-up, needle bar drive, feed systems), main shaft supports, hook drive shafts, and auxiliary rotating or oscillating axes. Standard sewing machines often use small deep groove ball bearings and needle roller bearings at these positions. BOM manufactures integrated bearing variants — cam linkage bearings, flanged bearings, and extended inner ring bearings — that combine the bearing with its adjacent component into a one-piece assembly, improving performance and simplifying manufacturing for sewing machine OEMs.

What is a cam linkage bearing and why is it used in sewing machines?

A cam linkage bearing is an integrated one-piece component where the bearing and its connected linkage arm are manufactured as a single unit, rather than being separate parts assembled together. In sewing machines, cam mechanisms convert the main shaft’s rotary motion into the reciprocating motion needed for needle bars, thread take-up levers, and feed mechanisms. The cam follower position requires a bearing that also serves as a mechanical link in the drive chain. By integrating the bearing and linkage into one piece, BOM eliminates the interface that introduces tolerance stack-up, play, and vibration under high-speed reciprocating loads.

How does an extended inner ring bearing improve sewing machine performance?

An extended inner ring bearing has an inner ring that is longer than the standard width, providing a greater shaft engagement surface. In high-speed sewing and embroidery machines, this longer contact zone improves the concentricity between the bearing and the shaft it supports, reducing angular misalignment that causes vibration and noise at high rotational speeds. The improved fit distributes mounting stress more evenly, extending both bearing and shaft service life while contributing to smoother, quieter machine operation.

What bearing specifications matter most for high-speed sewing and embroidery machines?

The critical factors are: high-speed capability (the bearing must sustain thousands of reciprocating or rotational cycles per minute without overheating or excessive wear), low noise and vibration (directly affects stitch quality and operator environment), dimensional accuracy (tight tolerances for concentricity and runout to maintain smooth operation at speed), and fatigue life (the bearing must withstand millions of high-frequency load cycles without performance degradation). For integrated bearing types, the elimination of component interfaces also improves all of these factors by removing primary sources of play and misalignment.

Can BOM manufacture custom bearings for specific sewing or embroidery machine designs?

Yes. BOM manufactures fully custom integrated bearings for sewing and embroidery machine applications — including cam linkage bearings with application-specific linkage geometry, flanged bearings with custom mounting interfaces, and extended inner ring bearings with non-standard ring dimensions. Full-specification customization covers dimensions, materials, surface treatments, and complete bearing architecture redesign to match specific machine design requirements. Contact our engineering team for a customized recommendation.
