Robotics & Precision Reducers
Bearings for Robotics & Precision Reducers
Robotic joints and precision reducers demand maximum load capacity and positioning accuracy within the tightest possible envelope. From humanoid robots and collaborative robots to harmonic drives and planetary gearboxes used across industrial automation, the bearing at the reducer output stage directly determines system precision, rigidity, and service life — every millimeter of cross-section matters.
BOM manufactures high-precision crossed roller bearings, harmonic reducer bearings, and flexible bearings engineered for robotic joint, harmonic drive, and planetary reducer applications. With full-spectrum custom manufacturing capability — including gear-bearing integration, flange-integrated structures, and waterproof configurations — BOM delivers solutions where standard catalog bearings fall short:
- Compact cross-section and lightweight design for space-critical joints and reducer housings
- High moment rigidity and rotational accuracy in a single bearing row for joint and output stages
- Gear-bearing integration — gear teeth machined directly on the bearing ring
- Full complement or spacer/cage internal configurations available
- Precision grades up to P4 for high-accuracy applications
- Full-specification custom manufacturing — dimensions, materials, coatings, and bearing structure
Compact & Lightweight Design
Robot joints and reducer housings compete for every millimeter of cross-section. BOM manufactures ultra-thin crossed roller bearings and slim flexible bearings that deliver multi-directional load support within minimal radial and axial envelopes. The compact design reduces joint weight and lowers motor torque demands, while fitting into the tight dimensional constraints of harmonic and planetary reducer assemblies.
Custom Integration
Inside harmonic and planetary reducers, the fit between gear and bearing directly determines output precision. BOM manufactures gear-integrated bearings with gear teeth machined directly onto the bearing ring as a single component, eliminating assembly tolerance stack-up and improving torque transmission rigidity. Flange-integrated structures and waterproof sealing configurations are also available for outdoor robots and industrial applications.
Precision & Rigidity
Robotic joints and reducer output stages require exceptional rotational accuracy and moment stiffness under dynamic loads. BOM’s crossed roller bearings arrange cylindrical rollers in an alternating 90° crossed pattern, so each roller supports radial, axial, and moment loads simultaneously. This delivers the rigidity of a multi-row arrangement within a single compact row. Precision grades up to P4 are available.
BOM Products for Robotics & Precision Reducers
Crossed Roller Bearings
Standard and slim-type crossed roller bearings for robot joint and reducer output stage rotary support. High moment rigidity and rotational accuracy in a single-row compact cross-section.
View Product Details →Slim Crossed Roller Bearings
Ultra-thin wall crossed roller bearings for weight-critical robotic joints and miniature reducer output stages, including humanoid robot limbs, wrist axes, and compact actuator modules.
View Product Details →Harmonic Reducer Bearings
Precision bearings for harmonic drive output shafts in robotics and industrial automation. Crossed roller or four-point contact configurations matched to standard and custom harmonic reducer dimensional envelopes.
View Product Details →Flexible Bearings
Thin-wall flexible bearings for the wave generator position inside harmonic reducers, designed to accommodate the elliptical deformation cycle of the flexspline.
View Product Details →Application Cases

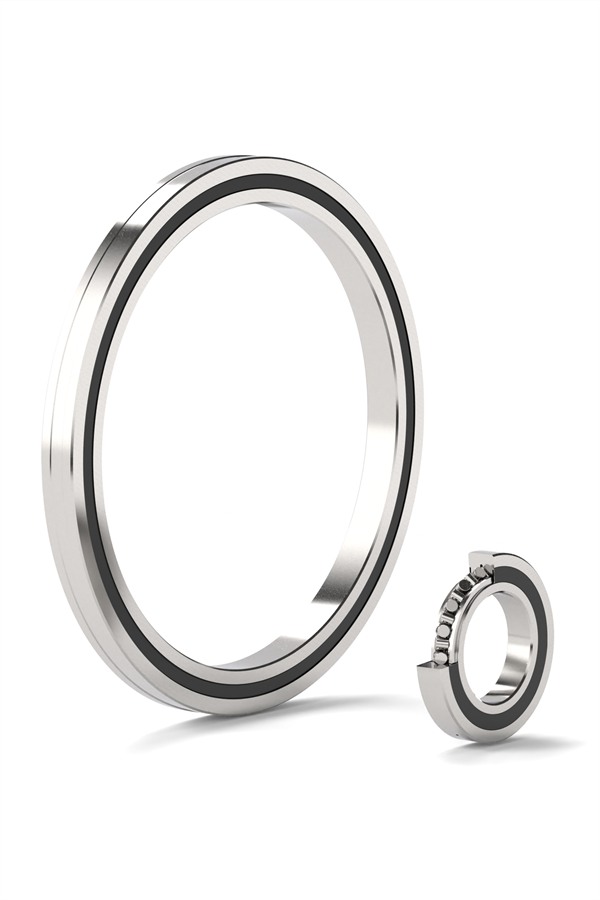

Slim Crossed Roller Bearings — Humanoid Robots & Quadruped Robots
Humanoid and quadruped robots require each joint to deliver high load capacity and rotational precision within an extremely compact envelope. BOM’s slim crossed roller bearings feature an ultra-thin wall cross-section that fits into the tightest joint housings while still supporting radial, axial, and moment loads simultaneously through the crossed 90° roller arrangement.
By minimizing bearing cross-section height and weight, these bearings help reduce overall joint size and mass — directly lowering motor torque requirements and improving the robot’s payload-to-weight ratio. The high rotational accuracy ensures precise, repeatable positioning at every joint, which is critical for stable locomotion in quadruped platforms and coordinated limb movement in humanoid systems. Currently in use by China’s top 2 humanoid robot manufacturers and top 2 quadruped robot companies.

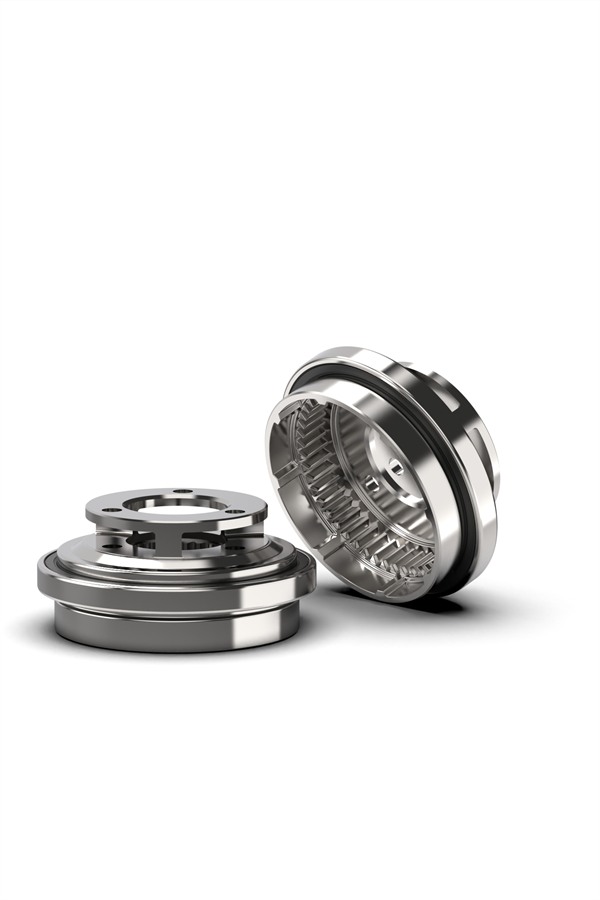

Gear-Integrated Crossed Roller Bearings — Harmonic & Planetary Reducers
In conventional harmonic and planetary reducers, the output gear and the output bearing are separate components — pressed or bolted together during assembly. This introduces tolerance stack-up between the gear and bearing, which directly limits the achievable output precision and structural rigidity of the reducer.
BOM’s gear-integrated crossed roller bearings solve this by machining the gear teeth directly onto the bearing outer ring as a single one-piece component. Eliminating the gear-bearing interface removes the primary source of assembly error, significantly improving output positioning accuracy and torque transmission stiffness. The integrated structure also reduces part count, simplifies assembly, and creates a more rigid load path from the gear mesh through to the bearing raceway — resulting in a more compact and reliable reducer module for robotic joints, CNC indexing tables, and industrial automation applications.
Bearings for Robotics & Precision Reducers: Why Choose BOM?
_1770101839_WNo_400d600.jpg)
Trusted by Leading Robotics & Reducer Manufacturers
BOM Bearing is a professional manufacturer of precision bearings for robotics, precision reducers, and motion control applications. Trusted by China’s top 2 humanoid robot manufacturers, top 2 quadruped robot companies, Japanese SCARA system builders, and harmonic and planetary reducer OEMs, BOM delivers customized bearing solutions engineered for the most demanding joint and reducer applications.
ISO 9001, IATF 16949, and ISO 14001 certified — quality and environmental standards validated at every production stage. Full-specification customization from non-standard dimensions and alternative materials to specialized coatings and complete bearing architecture redesign — engineered to your exact requirement.
Frequently Asked Questions
Crossed roller bearing vs angular contact bearing vs four-point contact bearing — how to choose for robot joints?
Crossed roller bearings arrange cylindrical rollers in an alternating 90° pattern, providing high moment rigidity and rotational accuracy in a single compact row — the default choice for most robotic joints where space and stiffness are critical. Angular contact ball bearings offer higher speed and lower friction but require paired mounting to handle combined loads, increasing axial stack length. Four-point contact ball bearings handle combined loads in a single row like crossed rollers, but with lower rigidity due to point contact. For most robotic joints, crossed roller bearings provide the best balance of compactness, rigidity, and precision.
What is the difference between full complement and spacer-type crossed roller bearings?
In a full complement design, all positions between the rings are filled with rollers — no separating elements — maximizing load capacity at the cost of higher friction. In a spacer-type (also called cage-type or retainer-type) design, polymer or metal spacers between adjacent rollers prevent direct roller-to-roller contact, significantly reducing friction and torque resistance for smoother rotation. Full complement suits high-load, low-speed applications; spacer-type suits robot joints requiring low starting torque and consistent motion quality. BOM manufactures both configurations.
What bearings are used inside harmonic and planetary reducers?
Harmonic reducers use a thin-wall flexible bearing inside the wave generator and a crossed roller or four-point contact bearing at the output stage. Planetary reducers typically use crossed roller or cylindrical roller bearings at the output shaft. BOM manufactures both flexible bearings and output-stage bearings matched to standard harmonic and planetary reducer dimensional envelopes, with custom configurations available for proprietary reducer designs.
Can BOM manufacture gear-integrated and flange-integrated bearings for reducer applications?
Yes. BOM manufactures integrated bearing assemblies where gear teeth or flange mounting features are machined directly onto the bearing ring as a single one-piece component. Gear-bearing integration eliminates tolerance stack-up, improving output precision and structural rigidity in both robotic and industrial reducer applications. Flange-integrated bearings simplify assembly by combining the bearing and its mounting interface into one part. Waterproof sealing structures are also available for outdoor robots, AGVs, and industrial gearbox applications.
What precision grades and customization options are available for robotic and reducer crossed roller bearings?
BOM manufactures crossed roller bearings in precision grades P5 and P4 for robotic and reducer applications. Beyond standard grades, BOM manufactures to full specification — non-standard dimensions, alternative materials, specialized coatings, and complete bearing architecture redesign including gear-integrated, flange-integrated, and waterproof configurations. Contact our engineering team for a customized recommendation.
