Cam-Slider Combination Bearing

Cam-Slider Combination Bearing

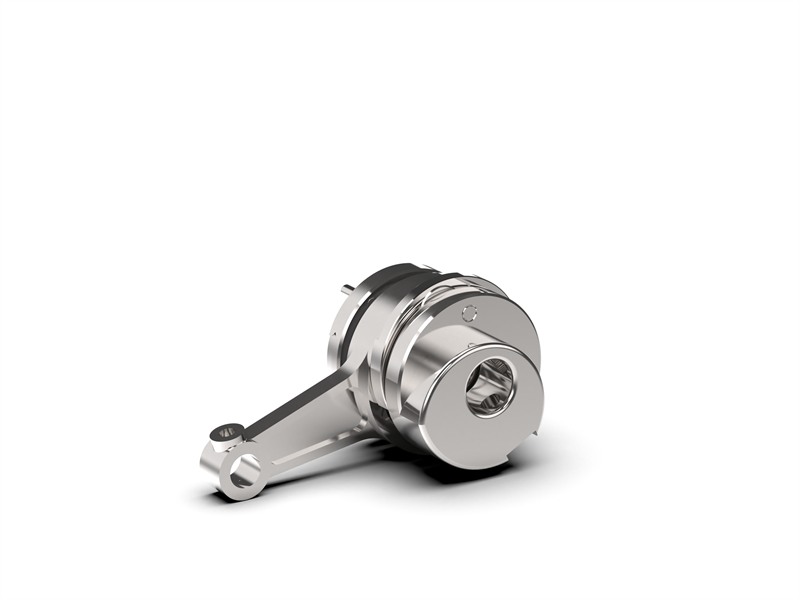

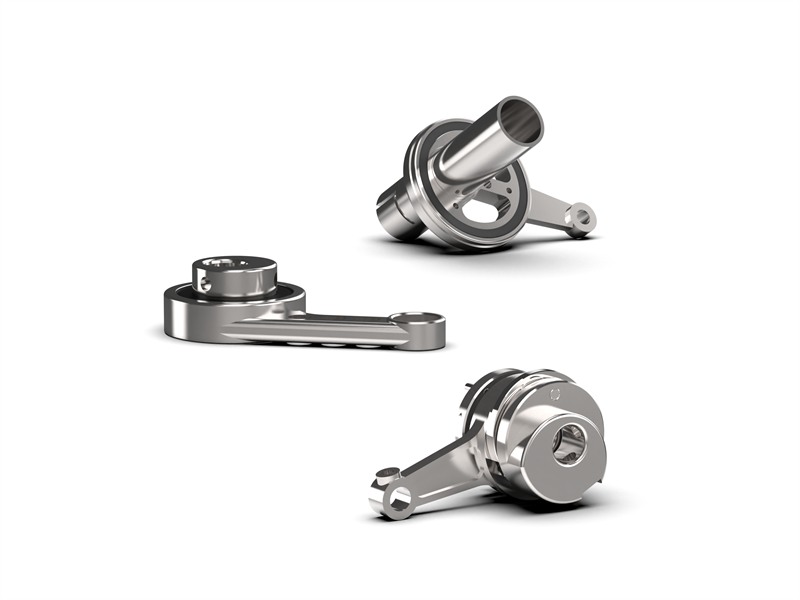

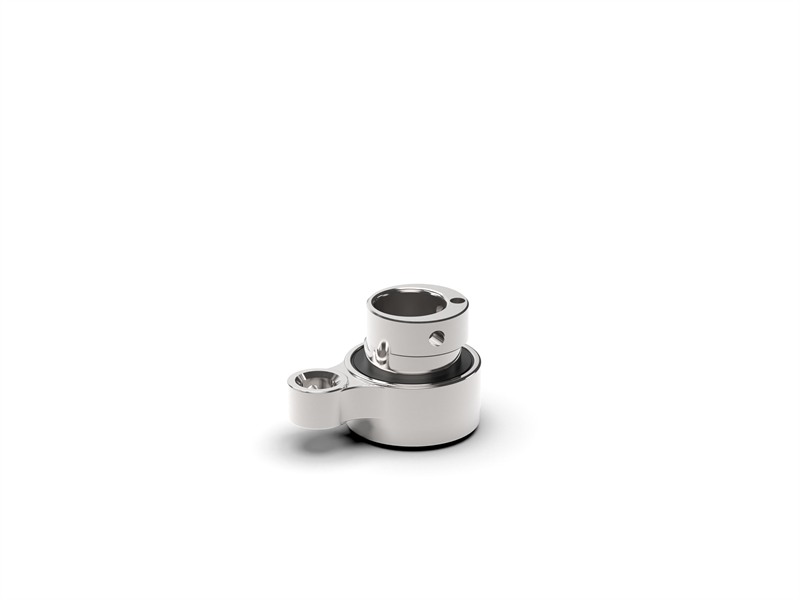

A patented integrated bearing that combines the inner and outer rings of a deep groove ball bearing with the connecting rod and eccentric cam of a crank-slider mechanism into a single precision-machined unit. One-piece construction eliminates multi-part assembly tolerances, while ball contact and enlarged rolling elements with thicker ring walls deliver a combination of speed, load capacity, and fatigue life that conventional crank-slider bearing arrangements cannot match. BOM engineers each custom variant from your application constraints, sharing your operating conditions and we design from there.

• Structure: Deep groove ball bearing + connecting rod + eccentric cam, integrated
• Friction Reduction: Ball (point) contact generates substantially less heat per revolution than line contact, enabling higher achievable speed
• Contact Type: Ball (point contact), offering low friction and low heat
• Assembly Precision: One-piece machining eliminates tolerance stack-up from multi-part assembly
• Ball Size: Enlarged rolling elements, providing significantly higher load capacity

Request A Quote

Speed & Thermal Efficiency

In high-speed crank-slider mechanisms, friction at the bearing contact zone is the primary speed bottleneck. Conventional line-contact bearings generate heat proportional to their contact area, and this heat accumulates with each cycle. As equipment speeds increase, bearing temperature rises, lubricant degrades faster, and operating speed hits a hard ceiling, not because the mechanism can't turn faster, but because the bearing can’t dissipate the heat.

The Cam-Slider Combination Bearing uses ball-type rolling elements with point contact, which produce substantially less friction per revolution. Lower friction means lower heat generation, slower lubricant degradation, and a significantly higher speed ceiling. The fundamental thermal bottleneck is removed, not just pushed higher.

In production applications, this change in contact mechanics has delivered significant speed increases while simultaneously reducing operating temperature and noise levels.

Load Capacity & Fatigue Life

Crank-slider mechanisms subject bearings to continuous cyclic loading where every stroke is a load reversal. Conventional bearing arrangements in these mechanisms often use thin-walled rings to fit the available envelope, but thin walls concentrate stress under cyclic duty. The result is metal fatigue that initiates cracks at the raceway surface, ultimately leading to spalling and premature bearing failure. Smaller rolling elements compound this by limiting the contact area available to distribute impact loads.

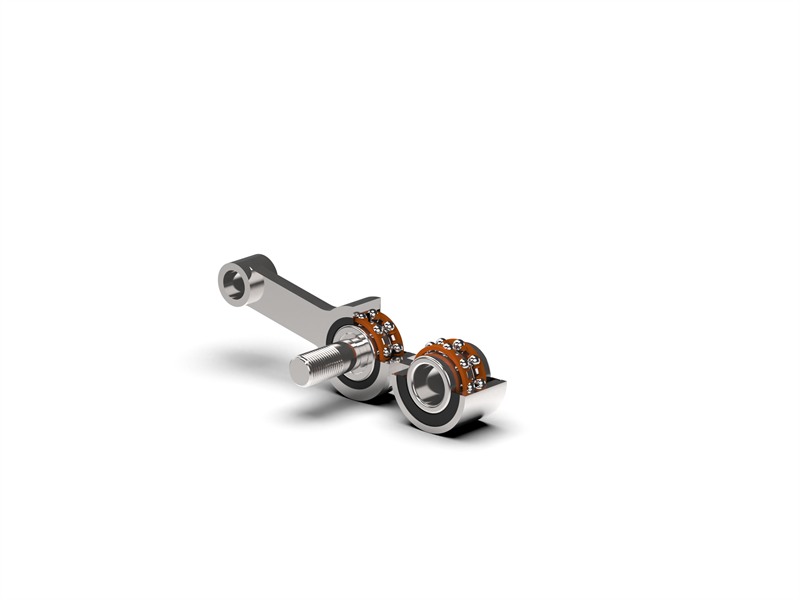

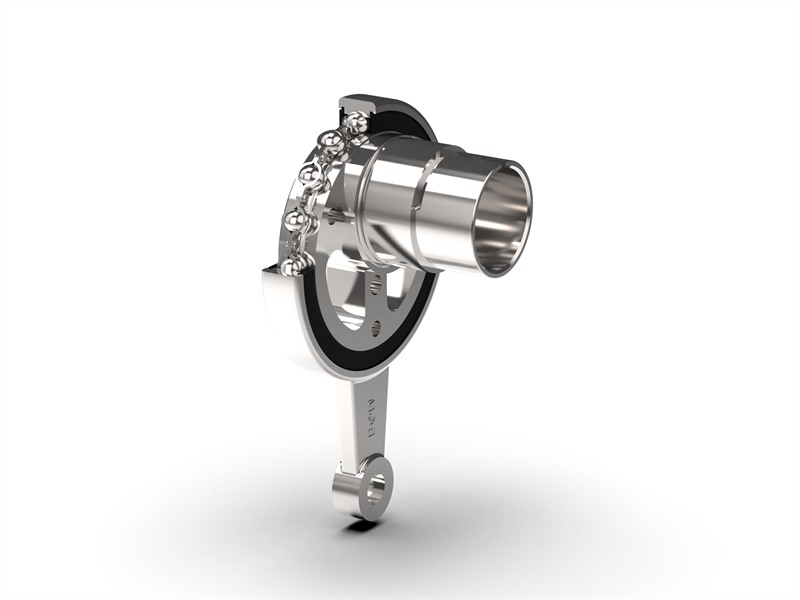

The Cam-Slider Combination Bearing integrates the bearing rings directly with the connecting rod and cam body, sharing structural material between components. This integration produces ring walls significantly thicker than standalone thin-wall bearings, without increasing the overall mechanism envelope. The thicker cross-section distributes cyclic stress over a larger area, raising the fatigue initiation threshold. Combined with enlarged rolling elements that increase the load-bearing contact zone, the result is substantially higher dynamic load capacity and extended service life under the same operating conditions.

Assembly Precision & Structural Simplification

A conventional crank-slider bearing arrangement consists of at least three separate components: the bearing itself, a connecting rod, and an eccentric cam. Each component is machined to its own tolerance, and each interface (press-fit, clearance fit, or fastener) introduces alignment error. These errors compound: the total concentricity deviation of the assembled mechanism is the sum of individual tolerances across all joints. At high speeds, this accumulated runout translates directly into vibration, noise, and accelerated wear at every contact surface.

The Cam-Slider Combination Bearing eliminates this tolerance stack entirely. The bearing rings, connecting rod, and eccentric cam are machined as a single integrated unit. There are no press-fits between separate components, no clearance gaps to introduce play, and no fasteners to loosen under vibration. Concentricity is determined by a single machining setup rather than by the alignment of multiple parts, producing precision levels unachievable through assembly of discrete components.

For equipment builders, this also simplifies the supply chain and assembly line: one integrated component replaces three or more separate parts, reducing inventory management, eliminating assembly labor, and removing a class of field failure modes related to incorrect installation and component mismatch.
