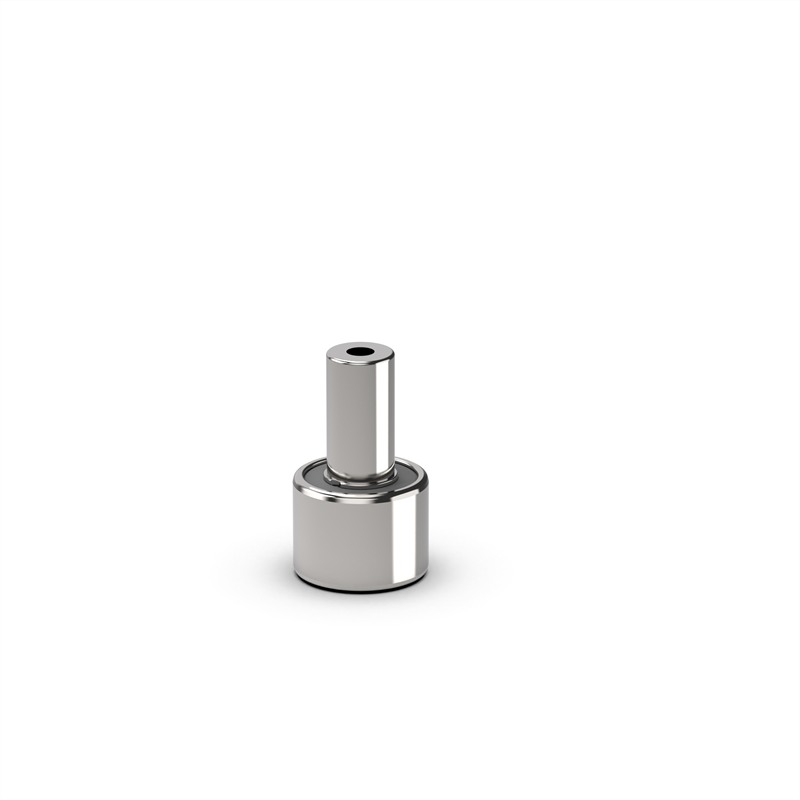

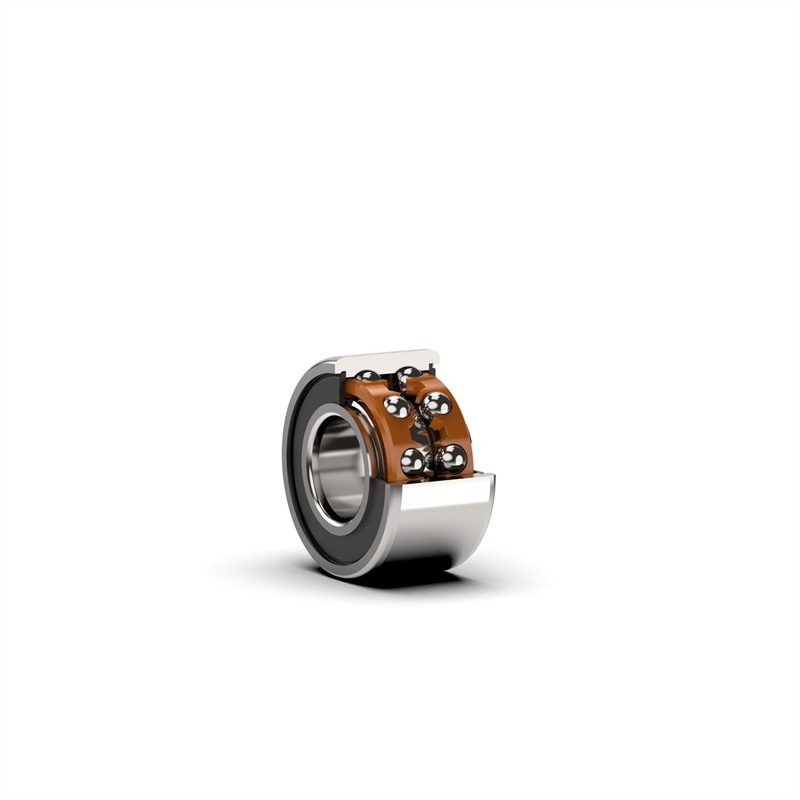

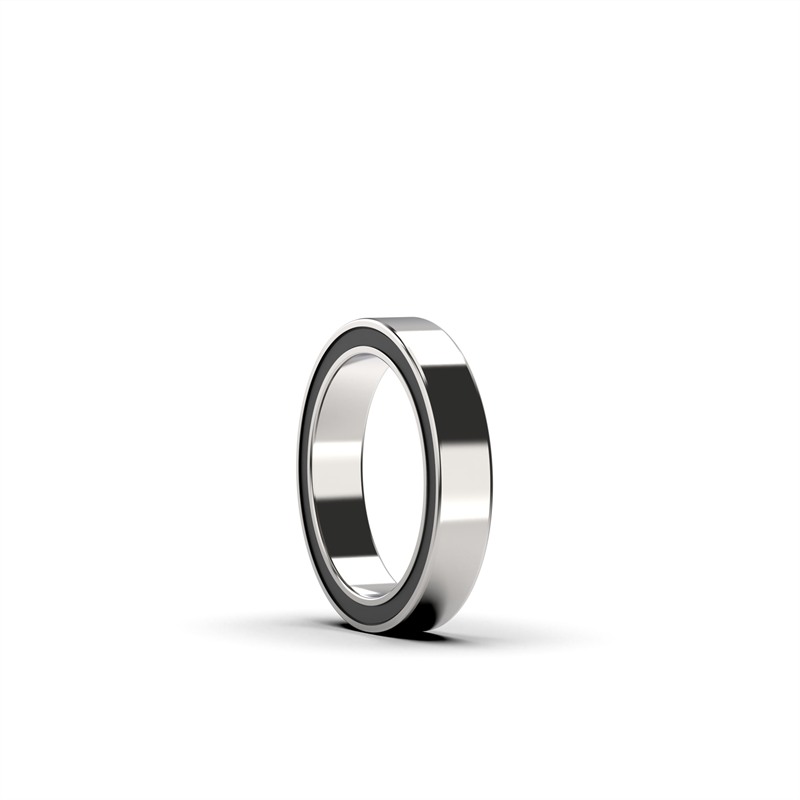

Custom Integrated Double Row Deep Groove Ball Bearing

Custom Integrated Double Row Deep Groove Ball Bearing

When standard catalog double row bearings cannot meet your load, precision, or envelope requirements, BOM's custom integrated double row deep groove ball bearing provides an engineered alternative. Both raceways are machined from the same inner and outer ring blanks, with ring geometry, rolling element size, and row spacing individually optimized for your application. The result is higher load capacity, tighter concentricity, and lower noise compared to catalog equivalents of the same outer dimensions. BOM engineers each variant from your specific operating conditions, designing from constraints rather than from catalog limitations.

• Load Capacity: 30% or more additional dynamic load rating vs. standard catalog double row bearings of the same outer dimensions
• One-Piece Ring Construction: Both raceways machined from the same ring blanks, eliminating tolerance stack-up and concentricity error
• Optimized Ring Geometry: Thicker ring walls and larger rolling elements made possible by eliminating the press-fit interface
• Application-Specific Design: Row spacing, contact angle, ball complement, raceway curvature, and cage geometry individually set for your operating conditions
• Drop-In Compatibility: Engineered to match your existing bore, outside diameter, and mounting interfaces for direct retrofit

Request A Quote

Catalog Dimensions Limit Load Capacity

Standard catalog double row bearings use fixed ring wall thickness and rolling element diameter. These dimensions are set to cover the widest range of applications at the lowest manufacturing cost, not to maximize performance for any particular application. When a specific machine demands more load capacity, the catalog offers only one option: move to a larger bearing series, which in turn requires a larger housing bore and shaft diameter.

BOM's custom integrated double row bearing removes this constraint. By machining both raceways from a single set of inner and outer ring blanks, we eliminate the press-fit interface that consumes wall thickness in paired single-row arrangements. The freed space allows thicker ring walls and larger rolling elements within the same bore and outside diameter, achieving 30% or more additional dynamic load rating without changing the surrounding structure.

Tolerance Stack-Up Undermines Both Rows

When two separate single-row bearings are pressed independently, manufacturing tolerances accumulate. The axis of one bearing row rarely aligns perfectly with the other, causing one row to carry a disproportionate share of the load. Over time, the overloaded row wears faster, reducing the life advantage that the dual-row arrangement was intended to provide.

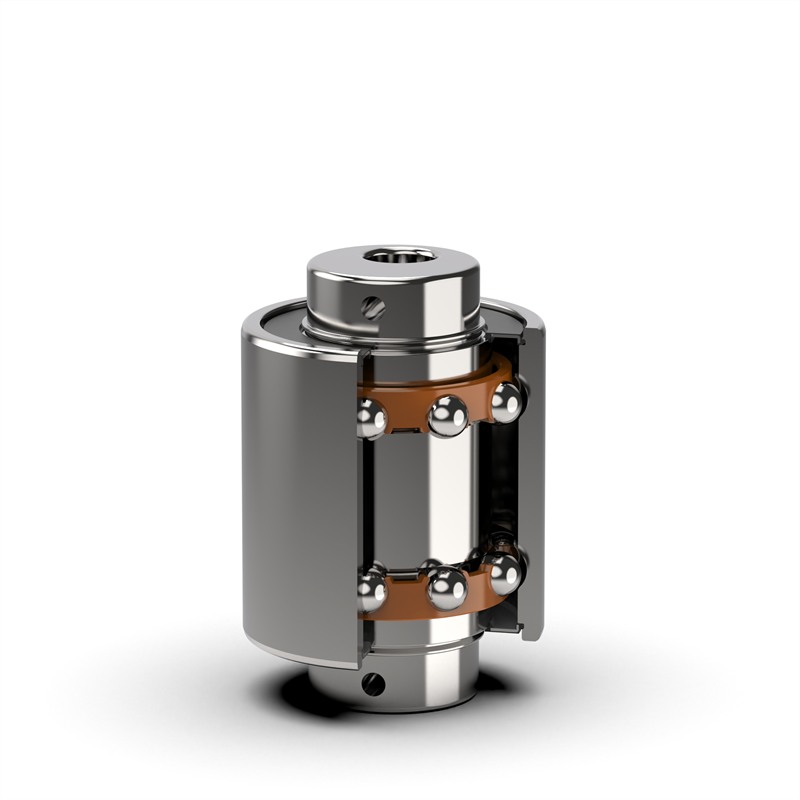

In our custom integrated double row bearing, both raceways are machined from the same inner and outer ring blanks in a single setup. This guarantees that the two rows share a common axis, eliminating the concentricity error that occurs when two separate bearings are individually pressed into a housing. The result is even load distribution across both rows, consistent service life, and more predictable performance over millions of cycles.

Application-Specific Geometry Optimization

Catalog bearings are designed for general use. Row spacing, contact angle, ball complement, and raceway curvature are all fixed at values that serve the average application. For machines with specific load profiles, speed requirements, or combined load conditions, this one-size-fits-all approach leaves performance on the table.

BOM's custom integrated approach treats every geometric parameter as a design variable. Row spacing is set to match the actual moment arm of your application. Contact angle and raceway curvature are adjusted to optimize the balance between radial and axial load capacity. Rolling element count, cage geometry, and material selection are all tailored to your operating conditions. The result is a bearing that performs at its theoretical optimum for your specific machine, rather than at a catalog compromise.
