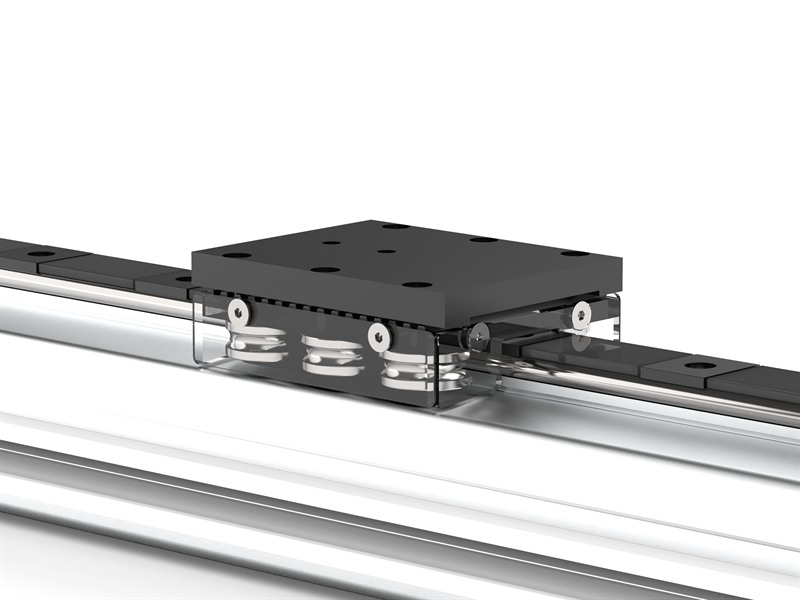

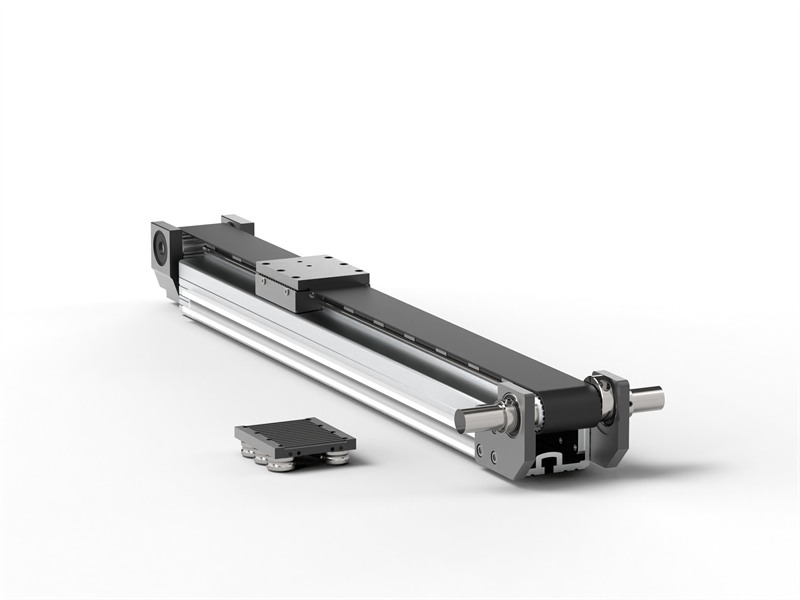

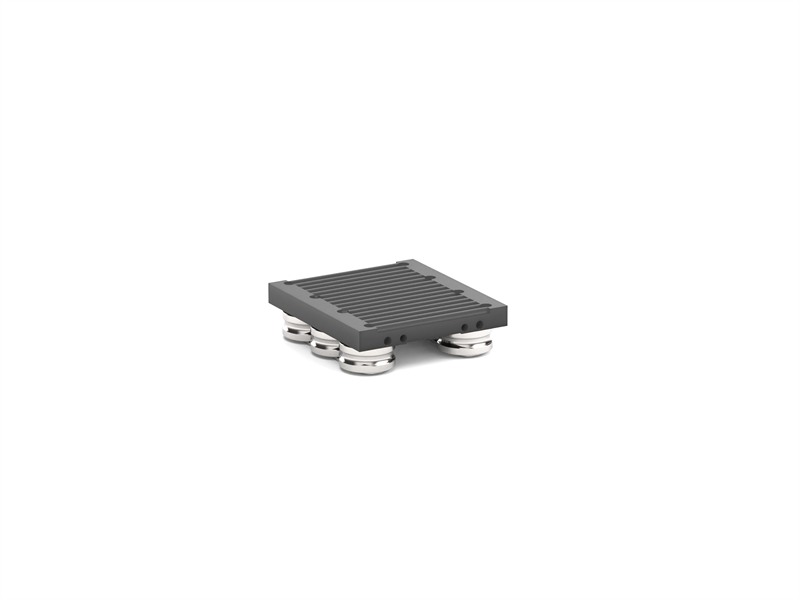

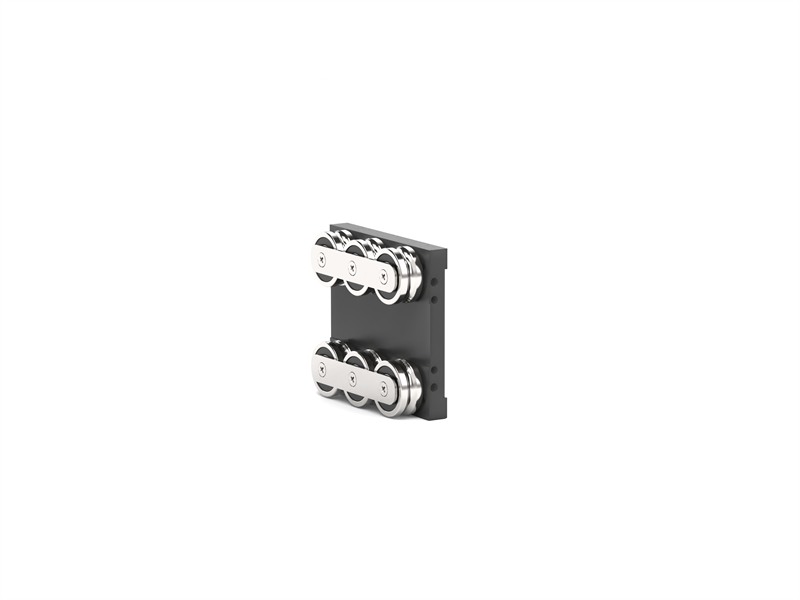

Track Roller Guidance Systems
BOM manufactures track roller guidance systems comprising precision roller carriages and steel or aluminum profile rails with hardened raceways. Engineered for long travel distances, high traverse speeds, and harsh environments, these modular systems support straight, curved, and oval track layouts. Full-specification custom manufacturing is available for non-standard configurations.
Key Features
-
Steel or Aluminum Profile Rails with Hardened Raceways
-
Contamination-Resistant Open Architecture
-
Straight, Curved, and Oval Track Layouts
-
Traverse Speeds up to 10 m/s
-
Eccentric Preload Adjustment
-
Full-Specification Custom Manufacturing Available
Product Inquiry
Product Category
Speak To One of Our Experts
Name can't be empty
Email error!
Message can't be empty
Send message
*We respect your confidentiality and all information are protected.
Description
Reviews
_1777531614_WNo_600d900.webp)
Track Roller Guidance Systems
Modular Profile Design Contamination Resistant
BOM manufactures track roller guidance systems, complete linear motion assemblies comprising precision roller carriages running on steel or aluminum profile rails with hardened raceways. Engineered for long travel distances, high traverse speeds, and harsh environments where recirculating-ball guides would clog or fail, these systems serve handling equipment, automation lines, and machine building worldwide. Multiple rail profiles and carriage configurations are available, from compact single-carriage setups to heavy-duty multi-roller bogies for curved and oval track layouts.
- System Architecture: Profiled track rollers on steel or aluminum profile rails with hardened raceways. The open design actively sheds chips, coolant, and particulate contamination
- Load Direction: Combined radial, lateral, and moment loads; multi-roller contact geometry distributes force evenly across the carriage footprint
- Preload Adjustment: Eccentric stud or cam mechanism allows infinite in-situ adjustment from free play to light preload, compensating wear and mounting tolerance without rail modification
- Track Layout Flexibility: Straight, curved, oval, and circular guidance paths supported; modular rail sections join for unlimited travel length
- Speed and Duty Cycle: Suitable for high traverse speeds and continuous cycling in automated production lines; low rolling resistance reduces drive power requirements
- Customization: Full-specification custom manufacturing available, covering dimensions, materials, coatings, and bearing structure
Custom Track Roller Guidance System Manufacturing
Customizable Engineering Support
BOM manufactures custom track roller guidance systems for applications where standard catalog configurations do not meet design requirements, from modified rail profiles and non-standard carriage footprints to fully integrated one-piece assemblies combining rail, carriage, and mounting structure.
- Rail Profile Customization: Non-standard cross-sections, extended or shortened profiles, special mounting hole patterns, and custom-length straight or curved rail segments
- Carriage Configuration: Modified roller arrangements, alternative carriage body materials (aluminum alloy or steel), and application-specific mounting interfaces
- Surface Treatment: Hard anodizing, nickel plating, stainless steel rollers, and corrosion-resistant coatings for washdown, cleanroom, or chemical exposure environments
- Integrated Assemblies: One-piece machined carriage-and-mount units that eliminate stack-up tolerances and reduce system assembly time
- Customization: Full-specification custom manufacturing available, covering dimensions, materials, coatings, and bearing structure
_1777531628_WNo_600d900.webp)
Applications
Packaging & Material Handling
Track roller guidance systems provide reliable, high-speed linear motion for cartoning machines, palletizers, and automated sorters operating in dusty or debris-laden environments where recirculating-ball guides would suffer accelerated wear and premature failure.
Gantry Systems & Large-Format Machines
Modular rail sections join to create unlimited travel lengths for CNC routers, laser cutting gantries, and large-format printing systems. The aluminum profile construction reduces structural weight while maintaining the rigidity needed for repeatable positioning across multi-meter spans.
Semiconductor & Flat Panel Manufacturing
Cleanroom-compatible carriage configurations with sealed rollers and corrosion-resistant coatings provide smooth, particle-free linear transport for wafer handling stages, LCD panel inspection systems, and LED assembly lines requiring consistent positioning accuracy at high cycle rates.
Woodworking & Stone Processing Machinery
The open rail profile actively sheds wood dust, stone slurry, and abrasive particles that would quickly clog enclosed linear guides. Track roller systems maintain consistent running performance in panel saws, edge banding machines, and bridge-type stone cutting centers even without frequent cleaning intervals.
About BOM Bearing
BOM Bearing is a professional manufacturer of track roller guidance systems and precision linear motion components, providing engineered solutions for machine builders, system integrators, and automation OEMs worldwide.
- Quality Assurance: ISO 9001, IATF 16949, and ISO 14001 certified; quality and environmental standards validated at every production stage
- Complete System Range: Rail profiles from 25 to 60 mm width; compact, standard, and bogie carriage configurations; straight and curved rail sections for any track geometry
- Custom Manufacturing: Full-specification customization from non-standard dimensions and alternative materials to specialized coatings and complete bearing architecture redesign, engineered to your exact requirement
- Technical Support: Professional engineering team for system layout, load calculation, carriage selection, and custom integration design
- Fast Delivery: Efficient production lines and global logistics network ensuring timely delivery
_1770101839_WNo_400d600.webp)
Frequently Asked Questions (FAQ)
What is the difference between a track roller guidance system and a recirculating-ball linear guide?
A recirculating-ball linear guide uses steel balls circulating inside an enclosed carriage block for high precision and rigidity, ideal for CNC machine tools and precision positioning stages. A track roller guidance system uses profiled rollers running on an open aluminum rail profile, which actively sheds contamination, supports long travel distances, and tolerates harsh environments. Track roller systems are preferred for handling equipment, gantry applications, and any machine where dust, chips, or coolant exposure would compromise an enclosed guide.
Can track roller guidance systems handle curved or oval motion paths?
Yes. The modular rail profile can be manufactured in curved segments, allowing designers to create oval, circular, or complex closed-loop track layouts. BOM manufactures curved rail sections to specified radii and can supply matched carriage configurations for continuous-loop conveying and transfer systems.
How is preload adjusted on a track roller carriage?
Track roller carriages use eccentric stud or cam-type adjustment mechanisms. Rotating the eccentric element shifts the roller axis position, allowing infinite adjustment from free play to light preload against the rail. This adjustment compensates for manufacturing tolerance, rail mounting variations, and long-term wear, all without modifying the rail itself. Preload should be set just tight enough to eliminate radial play while maintaining smooth, free-running motion.
What rail materials and surface treatments are available for corrosive environments?
Standard rail profiles are available in steel or aluminum with hardened raceways. For corrosive environments such as food processing washdown, chemical exposure, or outdoor installations, BOM offers nickel-plated rail profiles, specialized surface coatings, and carriages with sealed roller bearings rated for frequent water or chemical contact. Alternative materials and protective treatments can be specified to match the specific exposure conditions of your application.
Can BOM manufacture custom track roller guidance systems?
Yes. BOM's custom manufacturing capability covers the full spectrum, from modified rail profile cross-sections and non-standard carriage mounting interfaces to completely redesigned integrated assemblies where carriage, mount, and structural bracket are machined as a single unit. Our engineering team supports system layout, load analysis, and prototype development. Contact us with your application requirements for a detailed proposal.
